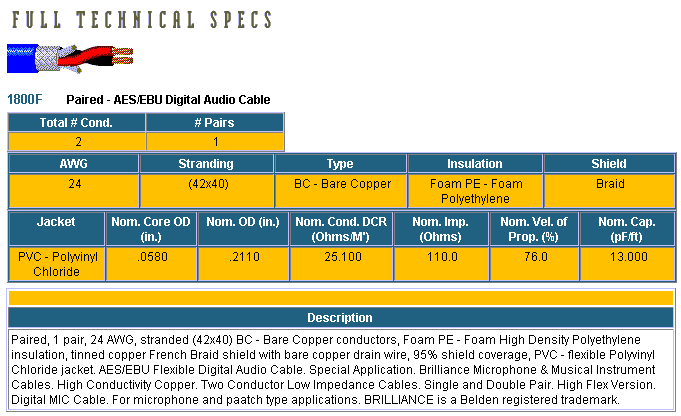

Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.


08-30-02    REV. 7       1800F



I.   DESCRIPTION:



     -----------



     1 PAIR, AES/EBU FLEXIBLE DIGITAL AUDIO CABLE.  FOR



     MICROPHONE AND PATCH TYPE APPLICATIONS



II.  ELECTRICAL CHARACTERISTICS:



     --------------------------



     IMPEDANCE @ 3 & 6 MHZ:           110 +/- 10 OHMS



     VELOCITY OF PROPAGATION:         76%



     CAPACITANCE BETWEEN CONDUCTORS



     OF PAIRS @ 1 KHZ:                13 PF/FT.



     INDUCTANCE OF PAIR:              .18 MICRO-H/FT.



     NOM ATTENUATION:



     FREQ (MHZ)  ATTN (DB/100')  FREQ (MHZ)   ATTN (DB/100')



      .384       0.46             3.072       1.75



      .706       0.67             4.096       2.23



      .768       0.70             5.645       2.89



     1.024       0.83             6.144       3.07



     1.411       1.04             8.192       3.71



     1.536       1.09            11.290       4.53



     2.048       1.30            12.288       4.78



     2.822       1.66            24.576       7.11



III. PHYSICAL CHARACTERISTICS:



     ------------------------



     TEMPERATURE RATING:              -20 TO +60 C



     MIN. BEND RADIUS:                2.25"



     MAX. PULLING TENSION:            41.5 LBS.



     WEIGHT/1000 FT.:                 24 LBS.



     CONDUCTOR MATERIAL & DIA.:       24(42X40) AWG BC;.024"



     INSULATION MATERIAL & DIA:       FOAMED HDPE; .058"



     PAIR SHIELD TYPE &               FRENCH BRAID, TIN CU



       AND % COVERAGE:                WITH BARE COPPER DRAIN



                                      WIRE; 95%



     JACKET MATERIAL & DIA.:          FLEXIBLE MATTE PVC



                                      .211"+/-.005"



     APPLICABLE SPECIFICATIONS:       NONE



IV.  COLOR CODE:



     ----------



     RED, BLACK



     ALL VALUES NOMINAL UNLESS OTHERWISE STATED.
